190SL - Frame and Floors - Pg. 1
110-350-06-33 Stud Mount (Requires 2) ..Sub to 180-350-03-33 (Genuine Mercedes-Benz) 304.00

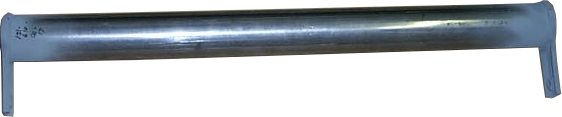

121-610-00-17 Tube Assembly, Bumper Mount 190SL 219.95

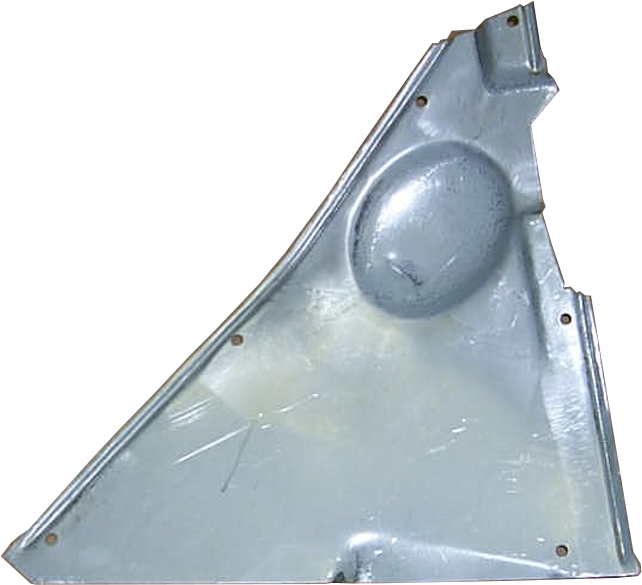

121-620-00-42 Shield, Master Cylinder Undershield For Pedals Sub For ( 120-524-11-33 ) 104.95
180-610-01-10 Bottom Rail, Complete, Left 799.95
180-610-02-10 Bottom Rail, Complete, Right 799.95
641-28 Trunk Floor, Rear Left 144.95
611-15/16A Frame Rail Repair Piece 19" Long (Requires 4) 2 One Each Trailing Arm Support 32.00

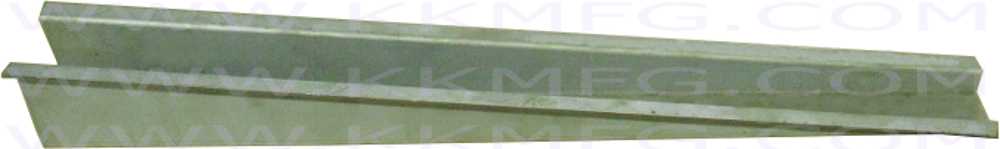

611-15C Frame Rail Upper Rear Left 82.95

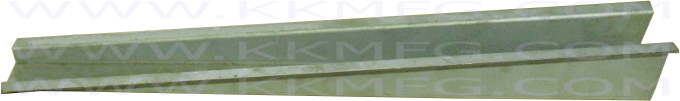

611-16C Frame Rail,Rear Upper Right 82.95
611-17 Frame Rear Support Left 41.95
611-18 Frame Rear Support Right 41.95
611-19 Frame Rail Front Upper Left 46.92
611-1A Support Frame Rear, Behind Seats (Requires 2) 101.87
611-20 Frame Rail, Front Upper Right 46.92
611-21 Frame Rail Assembly, Left, 2 Piece 189.95
611-21B Frame Rail,Intermediate W/Notches Left 109.95
611-22 Frame Rail Assembly. Right 2 Piece 189.95

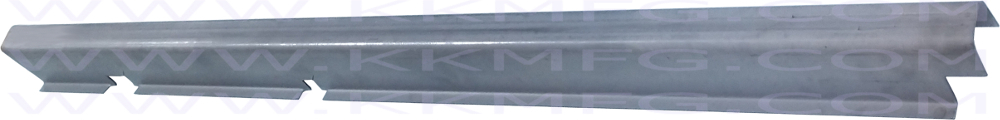

611-22B Frame Rail,Intermediate W/Notches Right 109.95
611-29 Tube, Front Bumper Mount 190SL 78.95
611-30 Mount, Bumper Bracket For Tube, Reproduction 190SL (Requires 2) 56.95
611-32 Jack Port, Front (Requires 2) 169.95
611-34 False Floor, Steel, Left 49.95
611-35 False Floor, Steel, Right 49.95

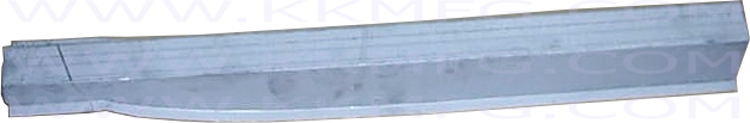

611-36 Support, Seat (Requires 2) 74.95
611-44A Trailing Arm Support, Left 167.95
611-44B Spring Tower Repair, Left 117.95
611-44C Frame Rail, Lower Rear, Left 190SL 159.95
611-45A Trailing Arm Support, Right 167.95
611-45B Spring Tower Repair, Right 117.95
611-45C Frame Rail, Lower Rear, Right 159.95
611-46 Reinforcement To Trailing Arm On Trailing Welds 19.95

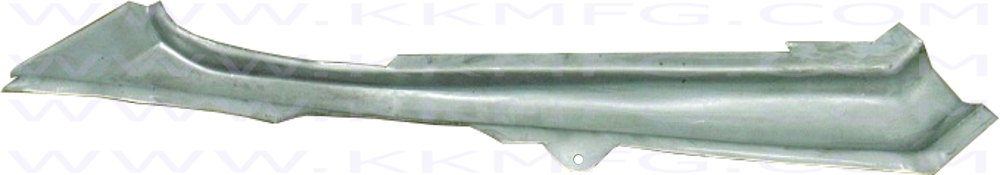

611-47 Cap, Front Frame Rail, Left 104.95
611-48 Cap, Front Frame Rail, Right 190SL 104.95
611-49 Cap, Frame, Center Left (Mercedes Part# 121-610-03-09) 107.95
611-50 Cap, Frame, Center Right (Mercedes Part# 121-610-04-09) 107.95
611-52A Trunk Floor, Center 339.95

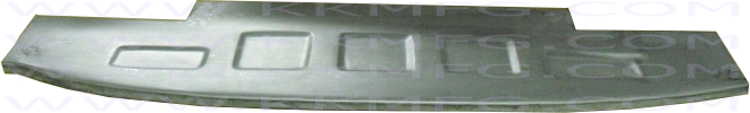

611-52B Trunk Floor, Rear 131.95
611-53 Crossmember, Rear Bottom 190SL 369.95
611-57 Floor Panel, Front Left 155.95
611-58 Floor Panel, Front Right 155.95
611-59 Floor Panel, Rear Left 189.95
611-60 Floor Panel, Rear Right 189.95
611-66 Spare Tire Well Left 190SL 399.95

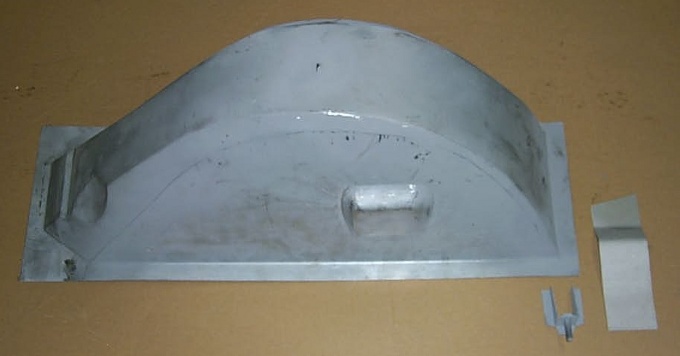

611-67 Spare Tire Well Right 190SL 399.95
611-68 Seat Bracket, Inner Left 190SL 104.95
611-69 Seat Bracket, Inner Right 190SL 104.95
611-70 Seat Bracket, Outer Left 190SL 109.95
611-71 Seat Bracket, Outer Right 109.95
611-72 Jack Port, Rear (Requires 2) 67.95
611-73 Bracket, Fuel Tank Mounting (Included With Spare Tire Wells) 13.95
611-78A Firewall Repair, Lower Left 79.95
611-78B Firewall Repair, Lower Right 79.95
611-82 Cover, Fuel Filler Neck 76.95
641-28 Trunk Floor, Rear Left 144.95
641-29 Trunk Floor Rear, Right 144.95

190SL - Body Panels - Pg. 2

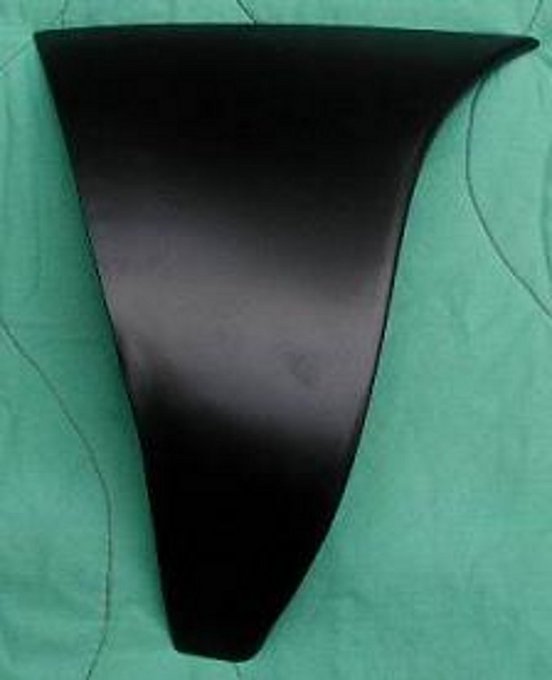

121-620-17 Fender Top, Front Left 190SL 521.95
121-620-18 Fender Top, Front Right 190SL 521.95

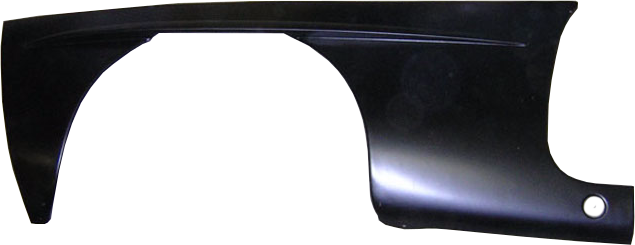

121-620-09 Fender Patch 3/4, Left, 190SL 650.00
121-620-10 Fender Patch 3/4, Right, 190SL 650.00
000-990-22-91 Cage Nut, Rocker Panel And Splash Guard Attachment 190SL (Requires 4) Subs= to 001-990- 5.00
000-994-13-45 Nut, Push In, Grill Screen Mounting (Requires 10) 1.20
100-541-00-24 Rod, Battery Hold Down (Requires 2) 9.95
110-884-00-98 Seal, Splash Shield - Dirt 9.95

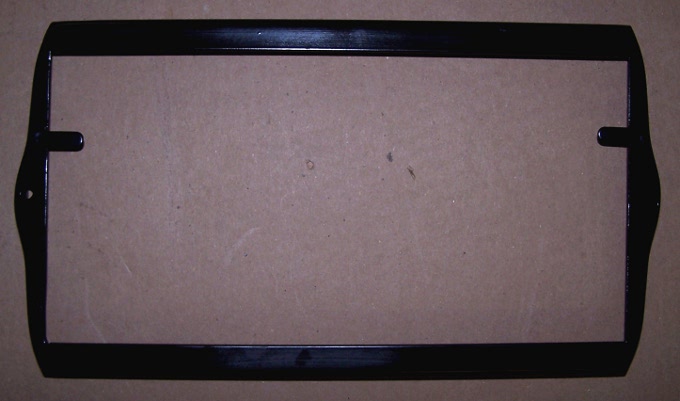

111-540-00-23 Hold-Down, Battery, 190SL 96.95

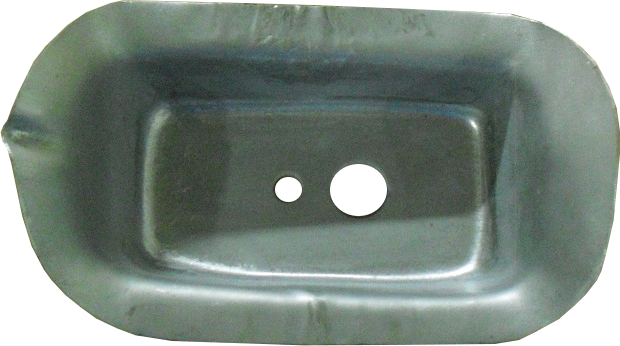

120-882-00-24 Canister, Tail Lamp, Reproduction 59.95
121-620-00-01 Reinforcement Nose to Frame (Requires 2) 5.95
121-620-00-25 Nose Panel 190SL (Genuine Mercedes-Benz) 4070.00
121-620-00-25R Nose Panel, Reproduction 190SL 1249.95
121-620-00-27 Headlamp Cannister 190SL (Genuine Mercedes-Benz) 244.00
121-620-00-41 Booster Box, Reproduction (From Germany) 232.95
121-620-00-75 Canister, Parking Lamp (Included With New Nose Panel) 50.95
121-620-01-09 Fender, Front Left 190SL (Genuine Mercedes-Benz) 4380.00

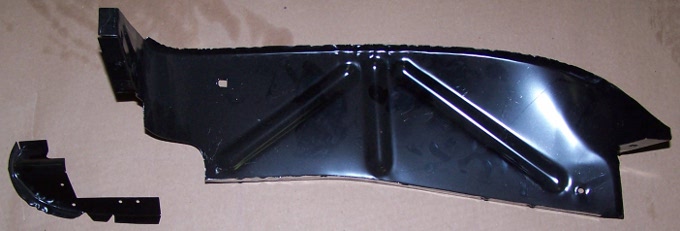

121-620-01-33 Shield, Rear Quarter Front Left Connecting Plate 190SL (Genuine Mercedes-B= enz) 286.00
121-620-01-59 Support, Air Intake Duct, Radiator, Left 305.95
121-620-01-61 Wheelhouse, Left Front, 2 Piece 1549.95

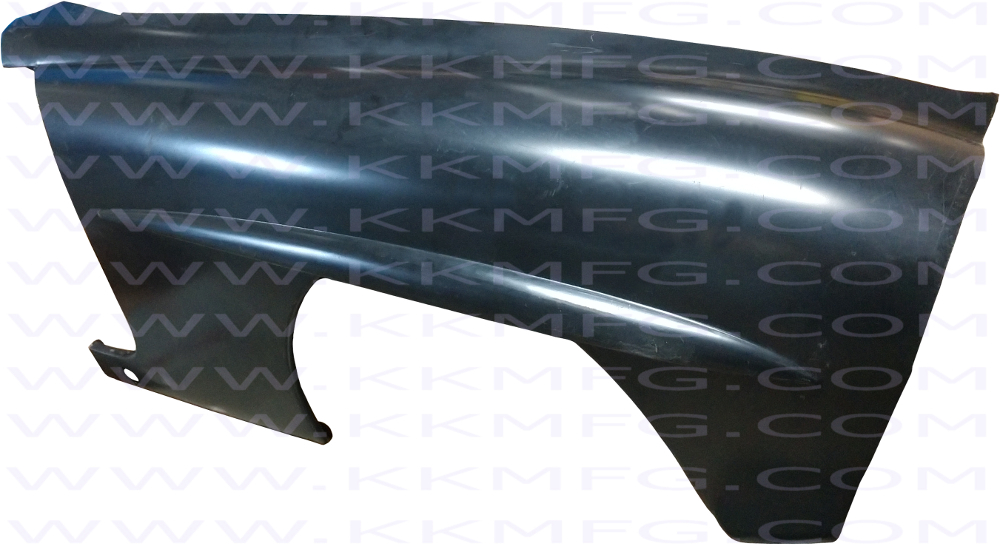

121-620-02-09 Fender, Front Right 190SL (Genuine Mercedes-Benz) 4350.00
121-620-02-33 Shield, Rear Quarter Front Right Connecting Plate 190SL (Genuine Mercedes-= Benz) 286.00
121-620-02-59 Support, Air Intake Duct, Radiator, Right 320.95
121-620-02-61 Wheelhouse, Right Front 190SL 2 Piece 1549.95
121-623-00-19 Strut Rod, Fender to Frame 30.95
121-626-00-07 Reinforcement, Nose, Lower 217.95
121-626-01-07 Reinforcement, Nose, Upper 219.95
121-626-01-81 Duct, Air Intake, Left 50.95
121-626-02-81 Duct, Air Intake, Right 190SL 158.95
121-640-01-57 Filler Panel, Rocker to Quarter, Left 19.95
121-640-02-57 Filler Panel, Rocker to Quarter, Right 19.95
121-646-01-75 Wheelhouse, Rear Left (Genuine Mercedes-Benz) 620.00
121-646-02-75 Wheelhouse, Rear Right 480.00
121-647-00-01 Filler Panel, Rear Quarter to Frame 10.95
121-647-01-10 Quarter Panel, Full Left 190SL (Genuine Mercedes-Benz) 1740.00
121-647-01-10P Quarter Panel Patch, Left 899.95
121-647-02-10 Quarter Panel, Full Right 190SL (Genuine Mercedes-Benz) CURRENTLY UNAVAILAB= LE 1350.00
121-647-02-10P Quarter Panel Patch, Right 899.95
121-647-05-09 Tail Panel,190SL (Genuine Mercedes-Benz) 690.00
121-690-00-27 Jack Hole Cover 190SL 17.95
121-750-01-83 Bracket, Trunk Rod at Quarter Panel 10.00
121-880-00-56 Hood Original (Used) 190SL 1800.00
121-880-00-85R Grille Screen, Reproduction 504.95
121-880-01-81 Hinge, Hood, Left (Mounted On Body) 219.95
121-880-02-81 Hinge, Hood, Right (Mounted On Body) 219.95
121-880-03-43 Shield, Dirt, Left Fender, Reproduction 139.95
121-880-04-43 Shield, Dirt, Right Fender, Reproduction 139.95
121-883-00-91 Gasket, Between Rocker Panel And Body (Requires 4) 11.95
121-883-01-01 Rocker Panel, Left, 190SL 345.00
121-883-02-01 Rocker Panel, Right, 190SL 345.00
198-880-01-76 Hinge Hood 190SL / 300SL (Mounted On Hood) (Subs For 198-880-00-76) 67.95
621-15 Battery Box, Reproduction (Mercedes Part# 121-620-00-40) 104.95
641-21A Patch Panel, Left 1/4-Ahead Of Wheel Opening 283.95
641-21B Patch Panel, Eyebrow, Left 186.95
641-21C Patch Panel, Left 1/4 After Wheel Opening 283.95
641-22A Patch Panel, Right 1/4 Ahead Of Wheel Opening 283.95

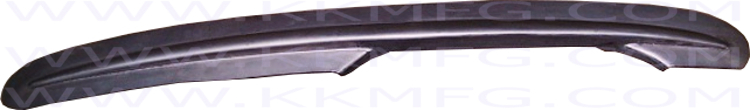

641-22B Patch Panel, Eyebrow, Right 186.95
641-22C Patch Panel, Right 1/4 After Wheel Opening 283.95
641-23 Patch Panel, Wheelhouse, Rear Left 269.95
641-24 Patch Panel, Wheelhouse, Rear Right 269.95
641-8 Wheel Arch, Rear Panel, Left 229.95
641-9 Wheel Arch, Rear Panel, Right 229.95
121-620-09 Fender Patch 3/4, Left, 190SL 650.00
121-620-10 Fender Patch 3/4, Right, 190SL 650.00
121-620-11 Patch Panel, Front of Wheel, Left, NO LONGER AVAILABLE 78.40
121-620-12 Patch Panel, Front of Wheel, Right, NO LONGER AVAILABLE 78.40
121-620-13 Patch Panel, Eyebrow, Front Fender, NO LONGER AVAILABLE 218.00
121-620-14 Patch Panel, Eyebrow, Front Fender, NO LONGER AVAILABLE 218.40
121-620-15 Patch Panel, Front Fender, Behind Wheel, NO LONGER AVAILABLE 253.13
121-620-16 Patch Panel, Front Fender, Behind Wheel, NO LONGER AVAILABLE 253.13

190SL - Exhaust and Air Cleaner - Pg. 3

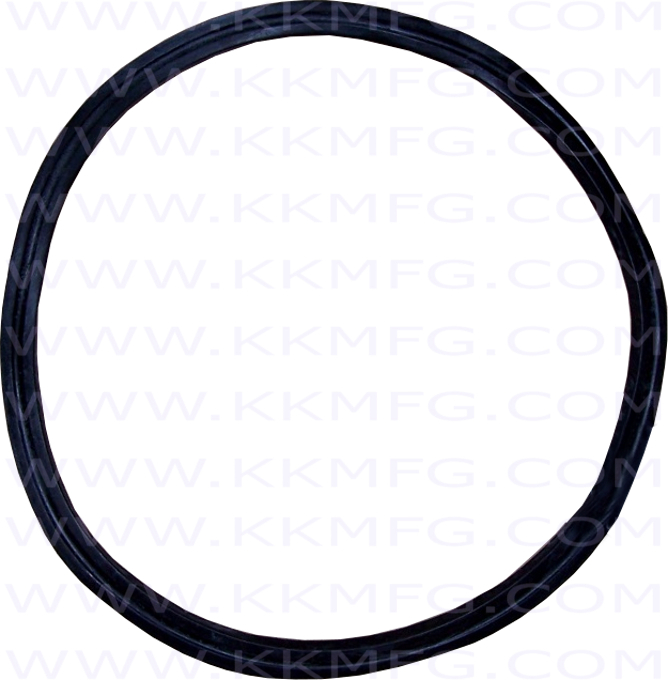

000-094-04-79 Seal Ring, Rubber, Air Cleaner 24.95
000-094-91-02 Air Cleaner Assembly, New, Sub to 001-094-43-02 2670.00
115-142-05-80 Gasket, Intake and Exhaust Manifold, Sub to 115-142-07-80 16.95
120-155-06-82 Bushing Kit, Strut Mounting 27.95

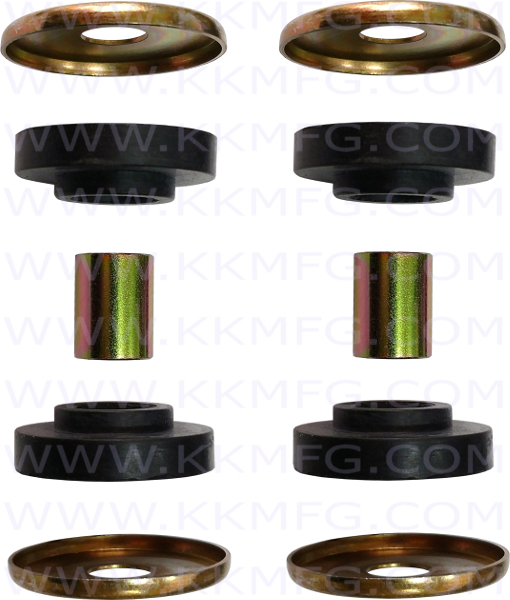

120-155-07-82 Mount Kit To Exhaust Bracket , DOES NOT COME WITH METAL PLATE 78.95
120-987-00-39 Buffer, Rubber, Exhaust Pipe to Right Floor 34.95
121-000-01-10 Exhaust Complete, Galvanized 899.95
121-000-02-10 Exhaust Complete, Stainless 190SL 1517.70
121-094-00-43R Strut, Support Rod, Carbs and Air Intake 43.95
121-094-01-82 Hose, Silencer to Air Cleaner (Genuine Mercedes-Benz) 120.00
121-140-00-00 Manifold End Repair Section 190SL (Fits Late Style Exhaust) 151.95

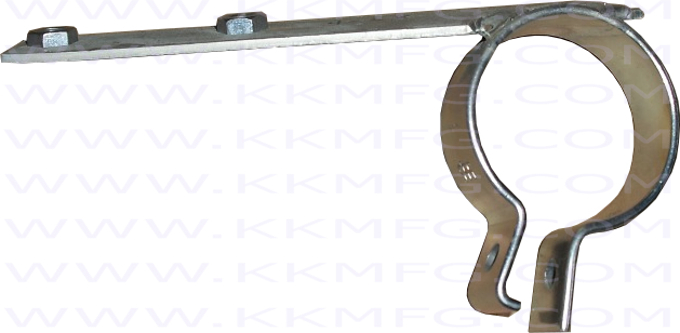

121-140-00-40 Hanger, Front Exhaust Pipe From #6503207 154.95
121-140-05-14 Exhaust Manifold, 190SL, Stainless Steel Reproduction 3999.95
121-142-04-15 Flange, Exhaust Pipe, Front, From #6503210 (60mm Inner Diam) 70.95
121-490-02-15 Exhaust Pipe, Center, With Resonator (NLA As Of 7-23-24) 669.10
121-490-02-15R Resonator, Reproduction, Galvanized 319.95
121-490-06-20 Pipe, Exhaust Front, From #650321 (Genuine Mercedes-Benz) 244.00
121-490-06-20R Pipe, Exhaust Front, From #650321 Reproduction 299.95
121-490-07-35 Hanger, Front Exhaust Pipe, to #6500196 100.43
121-492-00-14 Pipe, Tail Extension, Chrome 45.95
121-492-00-80 Seal Ring, Exhaust, to #6503209, Sub to 004-997-99-40 5.62

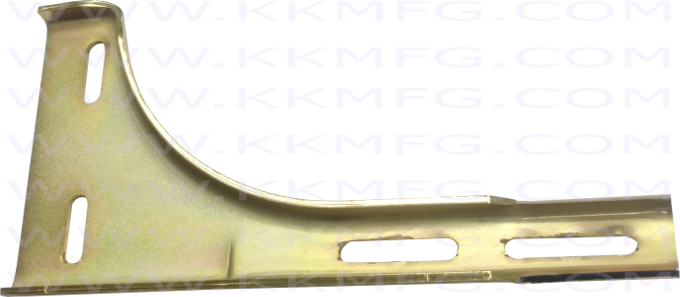

121-492-02-16 Support, Exhaust Manifold Bracket 77.95
128-490-00-37 Hanger Kit, Exhaust 55.00
128-490-01-37 Hanger Kit, Middle Exhaust (With Bracket) 93.95
180-491-08-01R Muffler, Rear 180,190SL, Galvanized 299.95
180-491-08-01 Muffler, Rear 190SL (Genuine Mercedes-Benz) 256.00
180-491-08-01R Muffler, Rear 180,190SL, Galvanized 299.95
188-492-01-81 Seal Ring, Exhaust, From #6503210 20.95
91-1A Snorkel Tube, Air Cleaner, Reproduction 70.00

190SL - Front Suspension - Pg. 4
000720-032206 Bearing, Wheel, Front Inner 190SL Early Up To 6-61 (30mm ID) 32.95
113-323-01-85 Mount - up to 005164 25.05

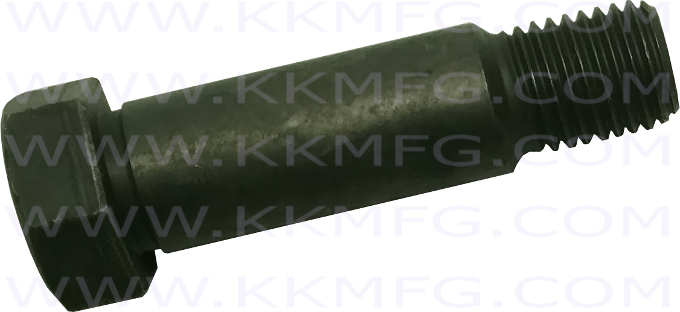

110-411-01-71 Bolt, Shaft To Joint (Requires 3) Long 23.95

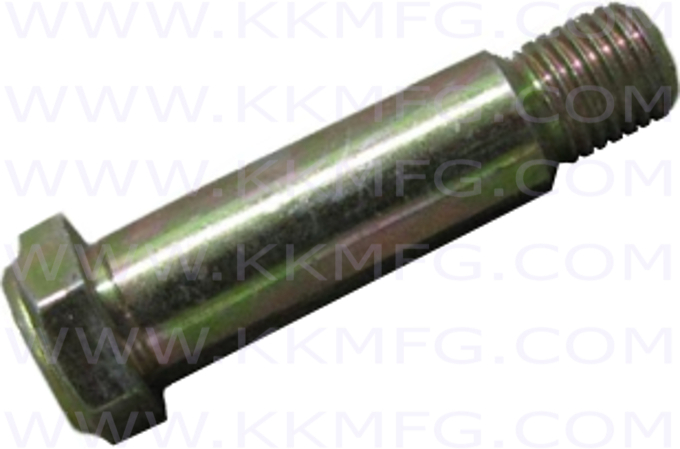

110-411-00-71 Bolt, Drive Shaft To Yoke (Requires 3) Short 23.95
108-410-01-15 Joint Kit, 90mm, Includes Bolts, Nuts 225.00
111-410-01-30 Yoke, Centering Cross, 90mm, From #6500173 (Genuine Mercedes-Benz) 174.00

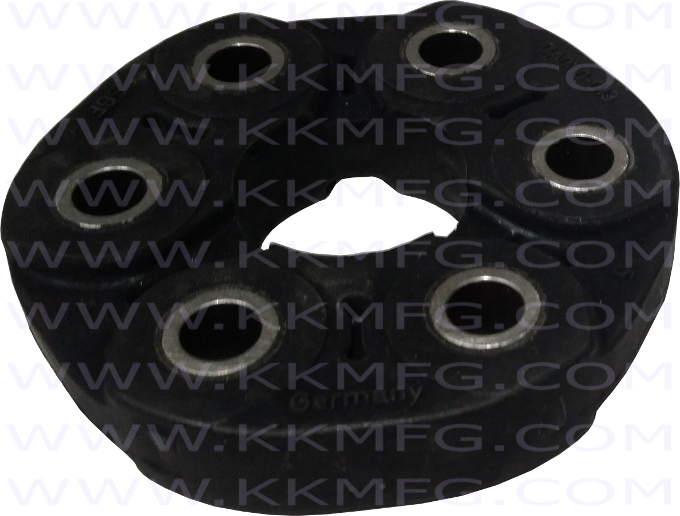

180-411-05-15 Joint, Rubber, 80mm Hole, Up To #6500172 62.00
180-411-06-15 Joint, Rubber, 90mm Hole, From #6500173..Sub to 189-411-01-15 84.15
180-410-01-31 U-Joint Drive Shaft 26mm Up To Chassis #7500982 (Early Takes 2) 74.95
111-410-00-31 U-Joint Drive Shaft 28mm From #7500983 (Late takes 2) Also for 113 Chassis 41.95
120-333-01-80 Seal, Control Arm - Inner, Requires 8 4.95
120-333-02-48 Bushing, Control Arm - Inner (Genuine Mercedes-Benz) 40.95
120-333-03-48 Bushing To Inner Arms (Genuine Mercedes-Benz) 39.95
121-321-04-04R Reproduction Front Spring CALL
121-586-00-33 Repair Kit, Lower Control Arm, Inner 450.00
181-333-01-80 Seal Control Arm Outer (190SL / 300SL Requires 8) 9.95
111-586-00-33 Repair Kit, King Pin, With Bushings And Seals (Does Both Sides) (190SL / A= ll 111 and O 311.95
110-330-03-18 Repair Kit, Lower Control Arm, Outer (190SL / 113 / 111) (FEBI Bilstein) 132.95
111-333-02-65 Buffer, Rubber, Lower Control Arm, (Requires 4) Fits 108, 110, 111, 113) 11.50
TRW-18060 Sway Bar Bolt Kit, Mount (Both Sides) 26.95
108-413-01-12 Mount, Rubber, Shaft Bearing (Genuine Mercedes-Benz) 108 / 109 / 111 15.50
003-981-23-25 Bearing, Drive Shaft Center, Sub to..008-981-43-25 39.95
128-586-01-33 Repair Kit, Upper Control Arm Inner(Requires 2) 374.08
110-330-02-18 Repair Kit, Upper Control Arm, Outer (190SL / 113 / 111) (Requires 2) (FEBI= Bilstein) 111.95
000-981-58-05 Bearing, Front - Inner 190SL Late From 6-61, Also Fits 107 Rear Axle 34.95

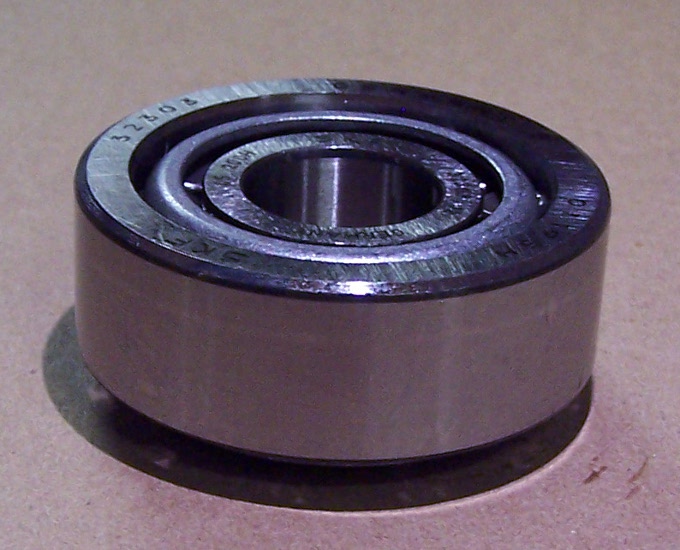

000-720-032303 Bearing, Outer With Cup, to #021754 52.60
000-981-59-05 Bearing, Front - Outer Late 190SL From 6-61 24.95
111-334-00-64 Plate, Ring, Bearing to Seal, to #021754 (Genuine Mercedes-Benz) 161.95
180-334-01-64 Plate, Ring, Bearing to Seal, from #021755 46.95
180-334-00-62 Retainer, Bearing, Left (Genuine Mercedes-Benz) 74.00
180-334-01-62 Retainer, Bearing, Right 75.00
120-990-13-20 Bolt, Cap Screw, Locking Nut 35.00
120-334-07-72 Nut Bearing Locking M16x1 (Genuine Mercedes-Benz) 46.00
000-997-18-46 Seal, Front Bearing Early To #021754 (65mm OD 48mm ID) 35.95
002-997-82-46 Seal, Front Bearing, From #201755, Sub To 003-997-93-46 15.00
180-323-05-00 Shock, Front, Bilstein, Gas 190SL 194.95
120-322-00-84 Washer, Rubber, Front Springs, Top (Requires 2) 14.95

190SL - Steering, Front Subframe - Pg. 5
000-330-04-85 Repair Kit, Drag Link Boot, 113 / 190SL (Genuine Mercedes-Benz) 7.50
000-338-52-10 Ball Joint Tie Rod End Right Hand Thread (190SL) (After Chassis# 8502370) 19.95
000-338-50-10 Ball Joint Tie Rod End Left Hand Thread (190SL) (After Chassis# 8502370) 19.95
000-462-07-30 Ignition Lock Assembly 190SL 38mm Steering (Rebuilt) 2199.95
000-462-08-30 Ignition Cylinder With Keys For, Locking Column 190SL 760.95
000-463-16-32 Steering Shock 190SL Up To #5501501 (Genuine Mercedes-Benz) 492.95
000-463-17-32 Shock, Steering, from #5501502 (Genuine Mercedes-Benz) 375.00
000-463-17-32R Shock, Steering, 190SL 79.95
000-464-00-39 Lever, Turn Signal Cancel (Genuine Mercedes-Benz) 17.45
000-464-02-90 Spring, Lever Release (Genuine Mercedes-Benz) 4.70
000-464-04-17 Contact Plate Horn 190SL (Used Only) (Will Need Pictures Of What Style You= Need) 350.00
000-545-25-13 Switch, Ignition With Keys, 190SL / 300SL Non Locking 99.95
000-997-48-46 Seal, Gear Box, Lower, Up to #021119 (29mm ID 40mm OD)(Genuine Mercedes-Ben= z) 9.90
002-997-47-46 Seal Gear Box Top 300SL / Late 190SL From #020668 (Power And Manual Steerin= g Gearbox 11 9.95
002-997-72-46 Seal, Gear Box, Lower, From #021120 (30mm ID 42mm OD) (Genuine Mercedes-Ben= z) (For Both 51.75
006503-018100 Seal, Idler Arm, Sub to 001-997-85-46 (Genuine Mercedes-Benz) 20.00
107-993-04-10 Spring, Pedal Return 107 (Genuine Mercedes-Benz) 9.75
112-333-01-65 Bumper, Control Arm - Upper (Genuine Mercedes-Benz) 15.50
120-292-05-50 Bushing, Pedal Pivot 190SL (Genuine Mercedes-Benz) 90.00
120-330-09-03 Tie Rod Assembly 190SL Early Or Late 95.95
120-333-04-53 Spacer Sleeve 12.50
120-333-19-65 Rubber Buffer, Lower Front Sub Frame 18.95
120-338-02-15 Tie Rod Tube,190SL 55.98
120-460-13-05 Drag Link, up to #5501501 223.95
120-460-15-05 CALL
120-461-05-80 Gasket, Steering Box Cover 190SL / 300SL 16.95
120-463-02-50 Bushing, Idler Arm 35.95
120-990-14-01 Bolt, Front Suspension to Frame ( Sub to 308676-012017) 8.50
120-994-00-13 Lock Plate 7.45
121-301-01-82 Pad, Accelerator 190SL 34.95
120-460-13-05 Drag Link, up to #5501501 223.95
121-460-15-05 Drag Link, 190SL, 95.95
121-993-02-10 Spring, Clutch Return 21.95
153-464-00-23 Plate, Insulating 190SL Steering 9.95
153-464-00-72 Castle Nut, Horn Ring 78.95
180-460-00-40 Horn Ring 190SL (Genuine Mercedes-Benz) 418.00
180-460-00-40R Horn Ring, Reproduction 190SL (NLA AS OF 10-18-23) 399.95
181-333-01-65 Mount, Rubber, Front Suspension 58.15
181-464-00-28 Washer, Contact Ring 190SL 19.95
181-464-01-86 Plate, Contact Cup 28.95
182-464-00-62 Ring, Horn Contact 32.95
186-460-08-03 Steering Wheel, Black 980.00
186-460-09-03 Steering Wheel, Ivory 190SL 1275.00
186-993-37-01 Spring, Pressure 8.95
187-460-01-44 Horn Button, Black, NLA 300.00
187-460-02-44 Horn Button 190SL Ivory (Genuine Mercedes-Benz) 368.00
198-540-00-38 Ground Strap, Steering Column 20.95
318-586-00-31 Repair Kit, Front Subframe Mounting Kit 190SL 438.95
319-292-00-82 Pad, Clutch & Brake (Genuine Mercedes-Benz) 4.22

190SL - Rear Suspension/Axle - Pg. 6
000-981-05-06 Bearing, Axle Rear, Sub to 094-981-65-00 (Genuine Mercedes-Benz) 160.90
000-981-16-01 Bearing, Pinion, Rear 115.95
000-997-13-46 Seal Ring, Rear Axle Pinion Use 000-997-13-46C 25.95
000-997-81-47 Seal Ring, Rear Axle, Inner 8.95
000-997-88-47 Seal, Rear Axle, Outer 14.95
001-981-15-25 Bearing Rear Axle 190SL, Sub to 094-981-65-00 36.09
110-350-06-33 Stud Mount (Requires 2) ..Sub to 180-350-03-33 (Genuine Mercedes-Benz) 304.00
110-352-00-67 Retainer, Trailing Arm To Stud.. 23.95
110-352-10-65 Bushing, Trailing Arm 190SL 19.95
110-352-00-67 Retainer, Trailing Arm To Stud.. 23.95
110-357-03-91 Boot, Rear Axle, Split With Clamps 74.95
110-357-04-91OR Boot, Solid, Original Style (190SL / 113 / 111 And Others) With Clamps 64.95
110-357-04-91 Boot, Solid, Rear Axle 64.95
110-357-05-91 Clamp Kit For Split Boot Includes Large And Small Clamp (Staples Not Includ= ed) 19.95
111-350-02-75 Bushing, Rear Axle Pivot 143.95
111-352-00-65 Bushing Kit, Trailing Arm Mounting 28.22
111-410-00-31 U-Joint Drive Shaft 28mm From #7500983 (Late takes 2) Also for 113 Chassis 41.95
120-350-00-66 Nut, Yoke to Pinion (Includes Lock Ring 120-994-00-44) 58.95
120-352-07-65 Bushing, Trail Arm to Axle 22.95
120-357-01-79 Gasket, Backing Plate to Axle Housing 14.95
120-401-01-71 Bolt, Wheel (Requires 20) (Genuine Mercedes-Benz) 35.00
120-990-00-01 Bolt, Arm to Rear Axle 59.95
120-990-00-59 Nut, Wheel 190SL (Requires 20) 5.95
120-990-09-20 Stud, Trailing Arm, Long (Genuine Mercedes-Benz) 30.95
120-990-10-20 Stud, Trailing Arm, Short (Genuine Mercedes-Benz) 34.95
120-994-00-44 Lock Ring, Nut to Gear Goes On 120-350-00-66 20.95
120-994-04-12 Lock, Rear Trail Arm Mount 16.95
121-324-18-04 Spring, Rear Coil, Left, 190SL (Genuine Mercedes-Benz) 139.00
121-324-19-04 Spring, Rear Coil, Right, 190SL (Genuine Mercedes-Benz) 139.00
153-357-00-26 Nut, Axle Shaft Mounting (Genuine Mercedes-Benz) 11.50
180-320-01-44 Bumper, Rear Axle (Requires 2) 140.95
180-325-00-52 Shim, Rear Springs 190SL 32.95
180-325-01-44 Grommet, Rear Spring 46.95
180-325-03-15 Retainer, Rear Spring, Top (Genuine Mercedes-Benz) 87.00
180-325-04-15 Retainer, Bottom, Rear Spring 141.95
180-326-04-00 Shock, Bilstein, Rear, Subs to 180-323-04-00 190SL 173.00
180-350-09-32 Differential Shaft 190SL 550.00
180-351-00-48 Bushing, Cross Shaft to Axle (Requires 1) 29.95
180-351-01-50 Bushing, Brass, Axle Arm (Requires 2) 51.95
180-351-01-53 Bushing, Steel, Axle Pivot (Requires 2) 70.20
180-351-03-73 Lock Plate, Rear Axle Mount 7.95
180-351-05-86 Bushing, Rubber, Axle Mount, Bottom 82.95
180-351-07-44 Bushing, Rubber, On Axle Cross Shaft (Requires 2) 44.95
180-351-08-86 Mount, Rear Axle, 30mm (Without Metal Sleeve) 130.95
180-351-09-86 O-Ring, Rear Axle Pivot, Retains Grease (Requires 4) 6.95
180-351-10-86 Mount, Rubber, Rear Axle, From #7503366 (With Metal Sleeve) 153.95
180-997-04-30 Bolt, Rear Axle Pivot Rod 20.00
183-353-03-73 Lock Plate, Axle Mounting 190SL / 300SL 17.95

190SL - Brakes Fig. #1 - Pg. 7
000-420-08-55 Valve, Bleeder, Front Wheel Cylinder 190SL / 300SL 14.95
001-420-04-18 Cylinder, Rear Wheel 105.95
001-420-33-18 Cylinder, Wheel, Left Front (190SL 105, 110, 111, 120, 128, 180 Chassis Lat= er Models) 137.95
001-420-34-18 Cylinder, Wheel, Right Front (190SL 105, 110, 111, 120, 128, 180 Chassis La= ter Models) 151.95
007603-010110 Seal-Ring, Brake Hose 1.95
110-420-10-10 Shoe Set Of 4 Front 190SL Relined Original (Re-lining Service For Your Shoe= s) 329.95
110-420-20-20 Shoe Set Of 4, Rear 190SL / 230SL Reproduction 334.95
110-421-02-18 Bolt, Wheel Cylinder Mounting 190SL 24.95
110-993-12-10 Spring, Shoe Release Late 190SL Rear 113 (Takes 2 Per Car) 19.95
110-993-12-10 Spring, Shoe Release Late 190SL Rear 113 (Takes 2 Per Car) 19.95
110-994-01-16 Lock-Plate, For Mount Bolt 5.95
120-423-01-56 Washer, Pin Pivot 23.95
120-990-06-40 Washer, Between Spring And Rear Shoe (Takes 2 Rear 190SL) Sub to 337-990-0= 1-40 1.85
120-990-07-40 Washer, Pivot Pin Front Shoes 190SL 18.95
120-990-07-40 Washer, Pivot Pin Front Shoes 190SL 18.95
120-993-07-01 Spring, Rear Shoe Mount 26.95
136-423-00-92 Spring, Release, Emergency Brake 190SL (Takes 2 Per Car) (Genuine Mercedes= -Benz) 5.75
180-420-07-29 Line, Brake, Left Front Wheel 510.95
180-420-08-28 Line, Brake, Between Front Wheel Cylinder 247.95
180-420-08-29 Line, Brake, Right Front Wheel 549.95
180-421-00-74 Pin, Front Adjustment (Genuine Mercedes-Benz) (Takes 4 Per Car) 7.50
180-421-01-32 Friction Washer, Brake 190SL Front Or Rear (Takes 16 Per Car) 12.95
180-421-01-37 Adjusting Sleeve Front 190SL After 5500162 (Takes 4 Per Car) 50.00
180-421-01-71 Pin, Adjustment, Threaded Front Or Rear 190SL Up To #550013 (Takes 8 Per Ca= r) 108.90
180-421-03-71 Screw, Brake Adjustment, Tension Front And Rear 190SL / 300SL (Genuine Merc= edes-Benz) ( 7.75
180-421-06-71 Pin, Threaded, Adjustment, Front Or Rear 190SL From #5500131 (Takes 8 Per C= ar) 52.95
180-423-02-74 Pin, Adjuster, Rear Brakes (Genuine Mercedes-Benz) (Takes 4 Per Car) 6.50
180-423-05-50 Sleeve, Brake Adjusting Rear 190SL (Genuine Mercedes-Benz) (Takes 4 Per C= ar) 33.50
180-990-13-40 Shim, Brake Adjusting 190SL Front Or Rear (Takes 8 Per Car) 12.95
180-990-24-40 Washer, Steel, Brake Adjuster 190SL Front Or Rear (Takes 16 Per Car) 8.95
180-993-11-10 Spring, Brake, Rear Left to #017088 190SL (Takes 1 Per Car) 45.70
180-993-23-01 Spring, Brake Guide Pin, Front (Genuine Mercedes-Benz) (Takes 4 Per Car) 3.80
180-993-25-10 Brake Shoe Spring Front 190SL Late (Takes 4 Per Car) (Genuine Mercedes-Benz= ) 9.00
194-993-00-01 Spring, Brake Adjuster 190SL / 300SL(Genuine Mercedes-Benz) (Takes 8 Per C= ar) 6.00
M12X1.5X14 Bolt, Cylinder, Front 1.95

190SL - Brakes Fig. # 2 - Pg. 8
000-420-16-55 Screw, Bleeder, 113, Rear Caliper 7.95
000-428-00-26 Bolt, Y Pipe at Booster, (Can Use 000000-004051 Also) 12.50
000-428-03-73 Retainer, Line To Hose At Wheel 190SL (Takes 4 per car) (Genuine Mercedes-B= enz) 4.66
000-428-19-24 Fitting, Y-Pipe To Adapter Stop Switch (Genuine Mercedes-Benz) 20.00
000-428-29-35 Hose, Brake, Front 39.95
000-428-30-35 Hose, Rear Brake, Left, Sub to 000-428-93-35 USE SUB NUMBER 16.00
000-428-31-35 Hose Brake, Right Rear 190SL / 113 29.95
000-428-36-24 Distributor, Brake Line (Genuine Mercedes-Benz) 70.00
000-430-21-30 Booster, Power Brake 1850.00
000-430-21-30R Booster, 190SL, Rebuilt Note: Must Send Your Booster In For Rebuild Service= . Core Charg 1949.95
000-430-61-01 Master Cylinder, to #65001956 (Genuine Mercedes-Benz) 282.00
000-430-72-01 Master Cylinder, from #6501957 190SL And Others 316.95
000-431-47-02 190SL Reservoir Plastic Brake Fluid (Original ATE) With Strainer (Bracket N= ot Included) 67.95
000-435-01-07R Diaphragm, Booster Vacuum 190SL 266.95
000-545-61-09 Switch, Stop Lamp, Subs to 001-545-08-09 (Genuine Mercedes-Benz) 30.85
000-586-00-30 Seal Kit to Reinstall Booster 10.00
002-997-67-82 Hose, Reservoir to Cylinder Line 5.95
108-427-00-72 Nut, Brake Cable Adjuster (Genuine Mercedes-Benz) NLA 40.00
121-420-00-32 Line, Main, Up To #650195 (Genuine Mercedes-Benz) Only Used On Early Cars W= ithout A Boo 57.75
121-420-00-85 Cable, Emergency Brake, Front (330mm Long, Ball To Ball, 350mm Overall Leng= th) 48.95
121-420-01-85 Cable, Center Brake, Emergency (1955mm Overall Length) 194.95
121-420-02-26 Line, Booster To Master Cylinder (78cm Long), 19.95
121-420-02-28 Line, Brake, NLA, Sub to 123-420-76-28 70.78
121-420-03-26 Line, Brake Booster Output To #8501754 19.95
121-420-16-26 Line, Booster to Distributor 32.95
123-420-56-28 Line, Left Front, All 190SL (37cm Long) 19.95
123-420-57-28 Line, Brake Left Rear 190SL (43cm Long) 180-420-03-30 20.00
123-420-58-28 Line, (Front Left 113 Takes1) / (Right Rear, (190SL Takes 2)(45cm Long) 19.95
123-420-58-28 Line, (Front Left 113 Takes1) / (Right Rear, (190SL Takes 2)(45cm Long) 19.95
123-420-76-28 Line, Brake, (Right Front 190SL) Main, Sub for 121-420-02-28 (Genuine Merce= des-Benz) 72.00
128-586-00-42 Line, Brake, Rear Left 421.75
128-586-01-42 Line, Brake, Rear Right 421.75
180-420-01-30 Line, Brake, Rear Right, To #750014 297.00
180-420-02-30 Line, Rear Axle, Left, Up to #750014 297.00
180-420-03-28 Line, (Metal Brake Reservoir) to Master Cylinder (Genuine Mercedes-Benz) 215.00
180-420-03-90 Cable Pulley Assembly, Left 605.95
180-420-04-90 Cable Pulley, Assembly, Right 605.95
180-420-10-85 Cable, Handbrake, Rear, 190SL 181.95
180-420-12-28 Line, (Plastic Brake Reservoir) To Master Cylinder, (Genuine Mercedes-Benz= ) 110.70
180-993-14-10 Spring, Emergency Brake Release, Sub to 121-993-00-10 (Genuine Mercedes-Be= nz) 34.00
186-995-02-20 Clamp, Cable, Lines to Body..Sub to 127-995-00-20 9.82

190SL - Clutch and Trans - Pg. 9
010-250-12-03 Clutch Disc, 20mm 190SL 181.95
000-545-06-06 Switch, Reverse Back Up Lamp 190SL 192.95
000-981-18-10 Bearing, Clutch Shaft 6.95
001-990-01-51 Nut, Shift Rod at Transmission (Genuine Mercedes-Benz) 9.25
107-993-04-10 Spring, Pedal Return 107 (Genuine Mercedes-Benz) 9.75
110-250-00-15 Bearing, Clutch, With Sleeve (Genuine Mercedes-Benz) 286.00
111-261-01-79 Gasket, Transmission Cover, 190SL, Sub to 309-261-07-80 (Genuine Mercedes-B= enz) 14.70
111-267-00-74 Bolt, Shift Rod at Transmission 24.95
111-267-00-83 Bushing, Shifter At Manual Transmission 190SL, 113 And Others (Takes 2) (Ge= nuine Merced 9.75
111-267-00-86 Bushing, Shifter on Lever Manual 190SL, 113 And Others (Takes 2) (Genuine M= ercedes-Benz 11.50
111-268-09-42 Knob, Push On Shifter, Round, Black, 4 Speed, 113, 190SL 63.95
113-262-00-34 Synchronize Ring,190SL / 113 34.95
120-254-00-97 Boot, Clutch Throw Out Lever 8.95
120-290-00-33 Bracket, Bearing Pedal Support 190SL 109.95
120-291-02-88 Boot, Clutch Lever Shaft 16.95
120-291-03-88 Boot, Pedal Shaft, Inner 11.95
120-292-05-50 Bushing, Pedal Pivot 190SL (Genuine Mercedes-Benz) 90.00
120-586-02-26 Gasket Seal Set Transmission Late 190SL..Sub to 120-586-01-02-26 When Stock= is Gone 59.95
121-254-00-10 Bearing, Clutch Throw Out 190SL (Includes Required 121-240-00-01 Spacer) 129.95
121-290-00-21 Support, Pedal Shaft,190SL (Genuine Mercedes-Benz) 165.20
121-290-09-39 Pull Rod, Clutch New German Reproduction 190SL 560.25
121-301-01-82 Pad, Accelerator 190SL 34.95
121-993-00-26 Spring Plate, Clutch Shaft 36.95
121-993-02-10 Spring, Clutch Return 21.95
180-250-07-04 Pressure Plate, Clutch 190SL 468.95
180-293-00-76 Screw, Clutch Adjustment 84.95
180-293-01-11 Lever, Clutch Release Yoke 190SL (Used) 100.00
186-988-00-10 Bushing, Clutch Rod 77.95
186-991-00-29 Ball, Shaft Pivot 77.95
198-268-00-42 Knob, Shift, Ivory Threaded Mushroom Shape 64.95
198-268-01-50 Bushing, Shift Rod At Lever, Manual 190SL, 113 And Others (Takes 4) (Genuin= e Mercedes-B 10.00
198-268-01-57 Cover, Shifter Bottom, Chrome 58.95
198-268-01-96 Boot, Shift Lever 21.95
198-990-00-48 Washer, Spring, Lever Base 19.95
319-292-00-82 Pad, Clutch & Brake (Genuine Mercedes-Benz) 4.22
77502 Bearing, Crank Pilot, Generator subs to 6202 22.00

190SL - Electrical and Wiring - Pg. 10
1497 190SL Wire Harness, Dash, Key Start 2399.95
1498 Wire Harness, Rear, With Body Mounted License Lights 749.95
1499 Wire Harness, Generator, Change to New Number 5936 39.60
2402 Wire Harness, Bumper Mounted License Lights 684.95
2403 Wire Harness, Steering Column Early 190SL Can Sub to 180-540-18-09 199.95
2674 Wire Harness, License Light Bucket 58.20
3229 190SL Wire Harness, Engine, Dash, Head Lights, Push Button Start 2399.95
77502 Bearing, Crank Pilot, Generator subs to 6202 22.00
000-151-07-50 Bushing, Starter, Front 11.65
000-151-08-50 Bushing, Starter, Rear 4.90
000-151-20-13 Starter Gear Drive Bosch 190SL / 300SL 358.95
000-151-27-14 Brush Set, Starter 190SL 59.95
000-151-81-01R Starter, Rebuilt,190SL (Exchange Only) 449.95
000-152-08-11 Solenoid, Starter sub to 000-152-10-11 190SL / 300SL (Genuine Mercedes-Ben= z) 290.00
000-154-27-14 Brush Set, Generator 18.70
000-154-58-02R Generator, Rebuilt (Exchange Only) ($500 Core Without Exchange) 412.95
000-156-71-01 Condenser, Ignition Distributor, Subs to 000-156-81-01 8.70
000-158-00-03 Coil, Ignition, Bosch Blue Label with Bracket 107.95
000-158-06-02 Cap, Distributor, With Cut Out on Edge 32.95
000-158-06-90 Points Set, Distributor, #ZKT48 (Fits VJR4BR24, VJ4BR11, VJ4RBR27 And VJ4BR= 12) 24.95
000-158-07-90 Points Set, Distributor #Zvkt-8 (Fits VJ4R4BR25) 17.95
000-158-15-90 Points Set (VRJ4 BR29) (Bosch 0 231 129 015) 139.95
000-158-20-31 Rotor, Distributor, Sub for 190SL 41.95
000-158-24-02 Cap, Ignition Distributor 24.95
000-158-89-01 Distributor, Ignition, Rebuild Kit 190SL 170.55
000-158-89-02 Repair Kit For Distributor 190SL 170.50
000-545-02-03 Cover, Fuse Box,190SL 88.95
000-546-18-41 Junction Block, 2 Wire, Exposed Subs To 180-540-03-50 50.00
000-821-06-52 Switch, Dome Lamp (Genuine Mercedes-Benz) 84.40
001-154-46-06 Regulator, Voltage 190SL 148.95
002-158-02-01 Distributor, Ignition 382.20
120-155-03-82 Mount Kit, Generator, 190SL Early Up to 015138 97.95
120-155-04-82 Mount Kit, Generator 190SL Late LHD (From 01539) 105.95
120-987-00-37 Grommet, Headlight, Early, Inner 51.95
121-150-03-19 Wire Set, Plugs, 190SL 82.95
121-155-00-72 Nut, Generator Tension Adjusting 19.05
121-155-02-28 Clamp, to Generator Adjusting 30.10
121-155-13-23 Rod, Generator Adjusting Large Eye 190SL M10 224.95
121-542-16-07 Tachometer Cable 190SL 49.95
121-542-19-07 Speedometer Cable 190SL 51.95
180-050-05-06 Gear, Distributor Drive (Used Only) 196.98
186-540-03-41 Ground Strap, Starter 190SL 57.95
186-545-02-89 Gasket, Fuse Box, 190SL / 300SL 20.95
602-301-02 Bushing For Repair Of Distributor 5.71
602-650-04 Spring, Advance to Distributor 190SL 6.95
BFU834A Cable, Positive, 190SL 133.95
PBPUN642 CALL
PBVUN642 Cable Negative From #7500128, 190SL 101.95
W7-DC Bosch Spark Plugs (Subs To WR-7-DC+) Standard, Up to 1975 4.95
XR-700 Ignition, 190SL, Electronic 225.00

190SL - Heating and Cooling - Pg. 11
000-501-00-15 Cap, Pressure Radiator or Tank 36.95
000-501-00-65 Drain, Radiator, Bottom (Genuine Mercedes-Benz) 210.40
000-835-41-98 O-Ring, Water, Sub to 000-835-58-98 2.85
000-997-43-92 Belt, Fan & Generator, 190SL 9.95
007603-008105 Washer, Water Tube Screw (Genuine Mercedes-Benz) 1.20
120-500-00-85 Bolt, Radiator Mounting 190SL 21.95
120-504-01-82 Bushing, Rubber, Radiator 5.95
120-830-00-36 Handle, Heater Control, Chrome Fits 190SL, 300SL Roadster and Others 124.95
120-835-00-92 Gasket Left Heater Core To Heater Box 190SL 28.95
121-200-01-58 Tube, Water Line, Bypass 449.63
121-200-02-20 Pump, Water, After Market 190SL 129.95
121-200-02-54 Line, Water Return 190SL 86.95
121-200-03-15 Housing, Thermostat, 190SL 294.95
121-200-05-15 Thermostat, 180 Degrees 190SL 14.25
121-200-13-20 Pump, Water, MB Original, 190SL 323.52
121-200-29-01 Repair Kit Water, Pump (Genuine Mercedes-Benz) 107.10
121-203-01-74 Cover, Thermostat 190SL 46.95
121-203-01-80 Gasket, Thermostat Housing, 2 Required 8.95
121-500-02-91 Radiator Bypass Tube, Right Hand Drive 150.95
121-830-00-15 190SL 2 Pc Water Tube Set - Reproduction (New Style Great Fit) 261.95
121-830-00-89 Escutcheon, Heater, Reproduction Left Or Right 129.95
121-830-02-05 Heater Box, Right, Reproduction, 2 Piece 678.95
121-830-09-62 Heater Box, Left, Reproduction 190SL 724.95
121-831-00-99 Grommet, Defroster 190SL 32.95
121-831-01-99 Gasket, Left Heater Box to Body 31.95
121-831-03-88 Hose, Right Heater Air Intake 390mm 49.95
121-831-04-88 Hose, Left Air Intake 190SL 97.95
121-831-04-88R Hose, Left Air Intake, Reproduction 78.44
121-831-05-88 Hose, Defroster Duct (Takes 2) 190SL (250mm Long x 60mm ID) 34.95
121-833-03-31 Cable, Heater Control Insert, Sub for 121-833-04-31, 121-833-05-31, 198-833= -01-31, 198- 4.95
121-833-04-31 Cable, Heater Control Insert, Subs to 121-833-03-31 2.91
121-833-05-31 Wire, Right Air Intake Control 190SL, Subs to 121-833-03-31 3.65
127-201-00-80 Gasket, Water Pump, 5 Hole 2.95
136-072-00-50 Bushing, Heater Control Cable to Lever 5.95
136-831-00-89 Screw, Heater Control Wire End to Lever (Genuine Mercedes-Benz) 8.00
180-200-04-19 Heating Connection Pipe, 921 Engine, From 8501758 29mm (Genuine Mercedes-Be= nz) 124.75
180-200-04-58 Tube, Water Bypass 190SL 43.95
180-203-08-80 Gasket, Thermostat Housing, Sub to 616-203-00-80 USE SUB NUMBER 2.08
180-203-09-80 Gasket, Housing, Sub to 616-203-01-80, USE SUB NUMBER 2.03
180-830-00-08 Motor, Heater Blower, (USED) With Housing 190SL 800.00
181-205-08-06 Fan Blade, Used 400.00
186-995-02-20 Clamp, Cable, Lines to Body..Sub to 127-995-00-20 9.82
2556-10F Heater Hose Set Cloth Braided 16mm 190SL 29.95
2556-8F Heater Hose Set Cloth Braided 12mm 190SL (Sub To 112-476-12-26) 25.95
32X40X120MM Hose, Radiator, Upper 9.95
38X46X70MM Hose, Radiator, Lower (2 Per Car) 8.95
915036-005100 Bolt, Hollow - Requires 2 4.95

190SL - Gauges and Switches - Pg. 12
000-462-03-32 KEY BLANK IGN 190SL 15.44
000-543-03-11R Clock, Electric, Reproduction 101.50
000-544-55-32 Flasher Turn Signal / High Beam Flasher Relay W/ Bracket 102.95
000-545-06-06 Switch, Reverse Back Up Lamp 190SL 192.95
000-545-12-12 Switch, Dimmer, 190SL (Genuine Mercedes-Benz) 95.00
000-545-17-14 Switch Starter Push Button 190SL / 300SL 125.95
000-545-25-13 Switch, Ignition With Keys, 190SL / 300SL Non Locking 99.95
000-545-47-24 Switch, Signal, Clamp Type 208.26
000-545-61-09 Switch, Stop Lamp, Subs to 001-545-08-09 (Genuine Mercedes-Benz) 30.85
000-825-02-52 Element, Cigar Lighter 190SL / 300SL 29.95
107-869-00-19 Nozzle, VDO Washer Bag (Genuine Mercedes-Benz) 37.50
115-825-02-53 Lighter & Socket Assembly, 113 299.95
115-869-01-21 Pump, Windshield Washer (Genuine Mercedes-Benz) NO LONGER AVAILABLE 145.20
120-540-00-58 Switch, Head Lamp 190SL / 300SL 799.95
120-540-02-44 Switch, Parking Light 190SL / 300SL 369.95
120-824-00-00 Wiper Insert 40.00
121-820-00-43 Shaft And Bearing Sleeve Windshield Wiper With Gear 190SL 193.95
121-820-00-43U Gear, Wiper Shaft, Used 60.00
120-824-00-26 Wiper Blade With Rubber 190SL 118.65
120-824-02-28 Wiper Arm 190SL 175.95
121-542-01-03R Gauge, Fuel, Rebuilt 395.00
121-542-04-16R Gauge, Tach, Rebuilt, CALL FOR AVAILABILITY CALL
121-542-07-06R Speedometer, Rebuilt, CALL FOR AVAILABILITY CALL
121-542-16-07 Tachometer Cable 190SL 49.95
121-542-19-07 Speedometer Cable 190SL 51.95
121-824-00-98R Seal, Wiper Shaft, Reproduction 18.95
136-824-03-99 Cap, Wiper Shaft, Chrome (Fits 190SL and 300SL Roadster) 31.95
180-300-18-30 Cable, Choke Inner Solid Wire Assembly 190SL (Wire 51" Long) 189.95
198-542-01-05 Gauge, Temp, Fahrenheit 520.80
198-542-01-05R Gauge, Temp, Rebuilt. 230.20
198-542-00-02R Gauge, Oil Pressure, Rebuilt 156.80
198-542-03-05 Gauge,Temp, Degrees Celsius Reproduction 190SL / 300SL Gullwing 467.95
VDO-200 Cap, Washer Bag 15.00
VDO-BAG-02 Washer Bag With Script 190SL Replaced by 000-869-02-20 289.95

190SL - Engine Parts: Upper - Pg. 13
000-997-69-94 Timing Chain, 928 Engine (Genuine Mercedes-Benz) 82.00
114-052-00-02 Gear, Tach & Distributor Drive 190SL / (300SL Intermediate Sprocket) (Sub f= or 121-052-0 286.00
114-055-00-01 Rocker Arm - 928 Engine And 127 / 129 / 130 Engine (Also Sub For 108-055-01= -01) 54.95
115-050-10-11 Tensioner, Timing Chain 406.95
115-052-04-16 Guide, Timing Chain - Lower, Requires 3 for 921 and 2 for 928 64.95
115-052-07-16 Guide, Timing Chain - Requires 1 for 921 and 2 for 928 49.95
115-142-05-80 Gasket, Intake and Exhaust Manifold, Sub to 115-142-07-80 16.95
121-010-08-80 Gasket Set, Head, Intake, Exhaust, Sub to 121-010-93-21 170.90
121-010-09-80 Gasket Set, Lower 190SL 110.95
121-016-01-80 Gasket, Valve Cover, 4 Cylinder 26.95
121-016-06-60 Distributor, Water, In Head (Genuine Mercedes-Benz) (2 Required) 35.50
121-016-07-60 Distributor, Water, In Head (Genuine Mercedes-Benz) 38.50
121-016-08-60 Distributor, Water, In Head (Genuine Mercedes-Benz) (4 Required) 23.50
121-016-09-60 Distributor, Water, In Head (Genuine Mercedes-Benz) 37.50
121-016-34-20 Gasket, Cylinder Head (No Longer Available Separate) CALL
121-050-00-24 Guide, Intake Valve, Standard,14mm 15.35
121-050-00-33 Rocker Arm, Intake, 921 Engine (Genuine Mercedes-Benz) 308.00
121-050-00-34 Rocker Arm, Exhaust, 921 Engine (Genuine Mercedes-Benz) 125.25
121-050-02-24 Guide, Intake, 2nd Oversize 14.20 28.50
121-050-03-01R Camshaft, Rebuilt, 190SL 277.50
121-050-06-24 Guide, Valve, Intake, 921 Engine 14.018mm 34.50
121-050-21-24 Guide, Valve, Exhaust, Oversize 14.018 23.60
121-050-22-24 Guide, Valve, Oversize, 14.20mm 23.50
121-052-01-10 Timing Chain, 921 Engine, May Need to be Shortened 119.95
121-052-03-01 Gear, Camshaft , All, 190SL And 113 (40 Teeth) 69.95
121-053-00-01 Valve, Intake 86.95
121-053-15-05 Valve, Exhaust 78.95
121-586-52-90 Gasket Set, Complete Engine Overhaul, 121-010-09-80 + 121-010-93-21 + 8x 18= 0-053-06-60 314.95
136-501-00-54 Cap, Oil Filler Without Seal (Genuine Mercedes-Benz) ( 190SL , Early 113 An= d Others) 56.30
180-050-04-09 Gear, timing chain tensioner 190SL (20 Teeth) 187.00
180-050-05-74 Pin, Ball/Rocker Arm 928, 230SL, 250SL (Genuine Mercedes-Benz) 34.50
180-052-06-80 Gasket, Tensioner - 190SL, 113 (Genuine Mercedes-Benz) 21.80
180-052-09-74 Pin, Pivot, 51mm (Genuine Mercedes-Benz) 15.50
180-052-10-74 Pin, Guide to Head Mounting, 58mm (Genuine Mercedes-Benz) 14.00
180-053-06-22 Spring, Valve, Inner (Genuine Mercedes-Benz) 6.00
180-053-06-60 Seal, Valve For 190SL (Requires 8) Also 300SL 6.95
180-993-12-25 Tension Spring To Rocker Arms, 928 Engine (Genuine Mercedes-Benz) 15.00
180-997-02-40 Gasket, Valve Cover Cap (Genuine Mercedes-Benz) 8.00
615-052-02-03 Gear, Crankshaft 190SL And Others (20 Teeth) 99.95
615-053-01-20 Spring, Valve, 190SL, Outer (Genuine Mercedes-Benz) 7.00
621-052-00-74 Pin, Guide - 921, 48.5mm 13.75

190SL - Engine Parts: Lower - Pg. 14
007603-026102 Gasket, Oil Drain Bolt And Fuel Drain 26MM ID (Genuine Mercedes-Benz) 0.40
77502 Bearing, Crank Pilot, Generator subs to 6202 22.00
000-180-00-09 Oil Filter, 190SL, 113 USE 000-180-00-09OR 9.65
000-184-06-80 Seal Oil Filter, 190SL, Top (Genuine Mercedes-Benz) 7.50
000-184-17-80 Seal, Oil Filter, Bottom, Lower (Genuine Mercedes-Benz) 8.00
000-184-22-25 Oil Filter, Up to #950008 14.95
000-184-32-80 Seal, Oil Filter, Bottom Bolt, Late (Genuine Mercedes-Benz) 2.40
001-586-29-03 Piston Ring Set, Standard 190SL 85.0mm (190SL) 334.95
001-586-31-03 Piston Ring Set, 85.5 (190SL) 339.95
001-586-35-03 Piston Ring Set, 86.50mm (190SL) 185.95
001-997-12-41 Seal, Main - Rear Late 8MM 190SL From Eng# 21506 And 113 11.95
008-997-16-47 Seal, Crankshaft, Front, Sub to 011-997-22-47 11.20
114-011-00-80 Gasket, Tach Drive to Block (Genuine Mercedes-Benz) 12.00
120-223-04-12 Mount, motor 190SL - Takes 4, 113 - Takes 1 Rear (Genuine Mercedes-Benz) 87.00
120-240-04-18 Motor Mount, Rear, Up to #6500172 151.95
121-010-03-10 Cover, Side Engine, Left 213.95
121-015-00-05 Cover, Side Engine, Right 249.95
121-015-01-21 Gasket, Engine Side Cover, Right 19.95
121-015-02-21 Gasket, Engine Cover, Left, 921 16.95
121-030-10-17 Piston, 85.5mm, 921 Engine (Genuine Mercedes-Benz) 492.00
121-030-11-17 Piston, 921 Engine, 86.0mm, Sub to 121-030-05-17 492.00
121-030-12-17 Piston, 921 Engine, 86.5mm, Sub to 121-030-06-17 (Genuine Mercedes-Benz) 492.00
121-030-00-40 Bearing Set, Main, Standard (Genuine Mercedes-Benz) 219.00
121-030-01-40 Bearing Set, Main, .25mm Oversize (Genuine Mercedes-Benz) 610.00
121-030-02-40 Bearing Set, Main, .50 Oversize (Genuine Mercedes-Benz) 414.00
121-030-03-40 Bearing Set, Main (Genuine Mercedes-Benz) 785.00
121-030-04-40 Bearing Set, Main, 1.00mm Oversize 259.95
121-030-72-17 Piston, 928 Engine, 86.5mm 3rd Oversize (Genuine Mercedes-Benz) 600.00
121-032-03-05 Gear, Flywheel Ring 190SL (Genuine Mercedes-Benz) 533.65
121-038-03-71 Screw, Connecting Rod - 190SL And 230SL from 001265 Manual or from 000111 A= utomatic 28.95
121-180-24-01 Pump, Oil, Engine 190SL 940.95
121-030-00-60 Bearing Set, Rod, Standard (Genuine Mercedes-Benz) 457.40
121-030-01-60 Bearing Set, Rod, .25mm Oversize (Genuine Mercedes-Benz) 306.00
121-030-02-60 Bearing Set, Rod, .50 Oversize (Genuine Mercedes-Benz) 290.00
121-030-03-60 Bearing Set, Rod, .75 Oversize (Genuine Mercedes-Benz) 412.50
121-030-04-60 CALL
121-540-02-59 Hose, Oil Pressure, Late 190SL (18" M10 On One Side M8 On The Other Side) 61.50
130-997-00-32 Screw Plug (Genuine Mercedes-Benz) 7.00
182-038-00-72 Nut, Connecting Rod - 230SL up to 010833 / 300SL (Genuine Mercedes-Benz) 12.00
186-038-07-50 Rod Pin Bushing 921 / 300SL Standard 25mm Inside 28mm Outside 84.95
198-542-01-30 Tachometer Drive 190SL / 300SL 799.95
621-031-11-07 Counterweight, Crankshaft, Front 690.00
621-038-11-50 Bushing, Piston Rod, 928 Engine 54.09
900255-078700 Seal, Rear Main, to 21505 Use 900255-068700 14.55

190SL - Fuel System - Pg. 15
000-070-11-52 Diaphragm, Solex Carb 107.95
000-091-91-01 Fuel Pump, 190SL, with Primer Lever 190SL and Others(Sub For 000-091-53-01) 369.95
000-471-20-30 Cap, Gas, Locking, Chrome, Non-Vented (Genuine Mercedes-Benz) 412.50
000-477-05-06 Gasket, Fuel Valve Housing, Early 11.95
000-477-09-18 Wire Clip, Fuel Filter, Early (Genuine Mercedes-Benz) 14.00
000-477-10-60 Gasket, Fuel Valve Housing Late 15.95
000-477-13-18 Wire Clip, Fuel Filter Cover 190SL 29.95
000-477-16-80 Seal, Fuel Filter Housing, Early (Sub to 000-477-19-80) (Genuine Mercedes-B= enz) 21.80
000-477-28-80 Seal, Fuel Filter Cover, Late (Genuine Mercedes-Benz) 6.00
000-477-29-80 Seal, Fuel Filter, Inner 10.95
000-477-36-15 Fuel Filter 190SL Early / 300SL Gullwing (Genuine Mercedes-Benz) 40.00
000-477-50-15 Filter, Fuel 190SL Late (Genuine Mercedes-Benz) 16.50
000-477-76-01U Filter Assembly, Early, Used 350.00
000-477-81-01U Filter Assembly, Late, Used 280.00
000-542-73-17 Sending Unit, Fuel Tank 190SL 196.95
000-586-00-09 Repair Kit, Fuel Pump, Original NLA 232.35
000-586-03-09 Repair Kit, Fuel Pump Less Primer (Genuine Mercedes-Benz) NOT AVAILABLE 200.00
000-990-07-63 Screw, Hollow, Carb, Bottom 15.95
000-991-16-22 Ball Socket, Carb Linkage, Sub to 000-993-04-61 Uses 6 Per Car. (Genuine Me= rcedes-Benz) 8.80
000-991-17-22 Ball Socket, Accelerator Linkage, LT HAND THREAD, USES 1 PER VEHC Can Also = Use 000-991- 3.95
003862-004000 Ferrule, Carb Overflow Line (Genuine Mercedes-Benz) 2.70
003871-004102 Nut,Carb Overflow Lines (Genuine Mercedes-Benz) 2.90
007603-006101 Washer, Carb Drain Screw 0.50
007603-026102 Gasket, Oil Drain Bolt And Fuel Drain 26MM ID (Genuine Mercedes-Benz) 0.40
110-471-01-80 Gasket, Sending Unit 6.95
113-987-00-44 Plug, Expansion Grommet (Genuine Mercedes-Benz) 2.50
115-471-00-79 Seal, Gas Cap, 190SL,113 4.95
120-155-00-82 Washer, Generator Mounting (Genuine Mercedes-Benz) 3.95
120-470-01-86 Screw, Fuel Drain, In Tank With Rubber Seal 64.95
120-476-01-84 Mount, Rubber, Line to Floor 3.95
120-997-11-82 Hose, Fuel Vent at Tank 1/2"ID x 10" Black, Cloth Wrapped 11.95
121-070-01-32 Line, Fuel, Double, to Carb 190SL (Genuine Mercedes-Benz) (DISCONTINUED) 276.00
121-070-01-32R Line, Carb, Double, Reproduction 190SL 349.95
121-070-01-35 Fuel Pipe, Carb, Bottom 190SL 228.95
121-070-02-40 Linkage, Hot Start, 190SL 271.95
121-070-06-24 Linkage Rod Assembly, Carb 190SL 245.95
121-070-10-75 Rod, Carb, With Nut 190SL 38.95
121-070-ADP Weber Carb Aluminum Adaptor Plate Set With Studs And Hardware 190SL 214.95
121-071-00-76 Washer, Carb Flange (Genuine Mercedes-Benz) 11.00
121-071-01-80 Gasket, Carb Flange, Rubber 10.95
121-094-01-79 Gasket, Silencer to Carbs 6.00
121-470-00-70 Main Fuel Line 190SL Up To #7501825 (1 Female And 1 Male End) (Takes2) 122.95
121-470-02-70 Main Fuel Line 190SL After #7501825 (2 Male Ends) (Takes 2) 117.95
121-470-08-01 Fuel Tank, 190SL (Genuine Mercedes-Benz) 1590.00
121-470-08-01R Fuel Tank, 190SL Vented (German Reproduction) 1134.95
121-470-08-01U Fuel Tank, Used, 190SL CALL
121-471-00-81R Boot, Filler Neck, Reproduction190SL 34.95
121-990-04-40 Washer, Carb To Manifold 1.60
121-991-03-40 Bushing, Carb Flange 7.95
121-993-00-10 Spring Choke Release E-Brake Release 190SL Sub for 180-993-14-10 (Genuine = Mercedes-Ben 9.95
121-993-05-10 Spring, Accelerator Return 12.95
128-476-07-26 Hose, Filter to Pump - 113 39.95
130-091-00-80 Gasket, Pump Adapter to Block 1.95
180-995-00-22 Clamp, Line to Floors( Requires 7).. 3.95
181-091-00-80 Gasket, Pump To Adapter (Need 2) 2.95
198-476-04-26 Hose, Filter to Pump From #7501826 95.95
900331-005006 Rod, Carb Linkage 145mm Long 190SL 15.95
900331-005091 Rod, Carb Linkage, Short 85mm Long 190SL 11.95
SO-14K Repair Kit, Carb, 190SL 49.95
WE-21K Carb Kit, Weber, 40 DCOE 40.95

190SL - Chrome Trim and Emblems - Pg. 16
000-987-19-41 Seal Pad, Trunk Lock, Late 5.95
000-990-17-33 T-Bolt , Dash Moulding 4.15
000-994-00-01 Screw Kit, Grille to Body (190SL And 113) 49.95
000-994-01-21 Lock Plate, Trunk 190SL / 300SL 30.95
120-750-00-84 Lock Assembly, Trunk, Late 115.95
120-758-00-02 Handle, Late, Original (Genuine Mercedes-Benz) NO LONGER AVAILABLE CALL
121-671-01-25 Moulding Aluminum Drip Rail, Left 190SL 85.95
121-671-02-25 Moulding Aluminum Drip Rail, Right 190SL 85.95
121-689-00-71 Chrome Moulding, Glove Box 190SL 124.95
121-689-01-71 Moulding, Dash, Lower Left 190SL 164.95
121-689-01-72 Moulding, Dash, Top Left 250.95
121-689-02-71 Moulding, Dash, Lower Right 332.00
121-689-02-72 Moulding, Dash, Top Right 190SL 250.95
121-690-00-27 Jack Hole Cover 190SL 17.95
121-690-01-75 Stone Guard, Left, (Genuine Mercedes-Benz) 831.20
121-690-02-75 Stone Guard, Right, (Genuine Mercedes-Benz) 831.20
121-690-01-75U Stone Guard, Left, 190SL Used CALL
121-690-02-75U Stone Guard, Right, 190SL Used CALL
121-698-01-80 Moulding, Eyebrow, Left Front (Genuine Mercedes-Benz) 370.00
121-698-01-81 Moulding, Rocker Panel, Left (Genuine Mercedes-Benz) 340.00
121-698-02-80 Moulding, Eyebrow, Right Front (Genuine Mercedes-Benz) 380.00
121-698-02-81 Moulding, Rocker Panel, Right (Genuine Mercedes-Benz) 340.00
121-698-03-80 Moulding, Eyebrow, Left Rear (Genuine Mercedes-Benz) 362.00
121-698-04-80 Moulding, Eyebrow, Right Rear (Genuine Mercedes-Benz) 370.00
121-750-00-79 Star, Trunk, 190SL (Genuine Mercedes-Benz) 350.00
121-750-00-84 Lock, Trunk, Tab Style With Key. (Note: Does not have key flip door) 147.95
121-817-02-15 Emblem, 190SL, on Trunk (Genuine Mercedes-Benz) 294.00
121-880-00-23R Grille Assembly, 190SL, Reproduction 2058.00
121-880-00-73R Bumper, Rear Center, Reproduction 2463.05
121-880-01-23R Grille Wing, Left, Reproduction Chrome Plated 190SL 1199.95
121-880-01-72RU Bumper End, Left Rear, Reproduction, Unplated 799.95
121-880-01-72R Bumper End, Left Rear, Reproduction 1800.00
121-880-02-23R Grille Wing, Right, Reproduction Chrome Plated 190SL 1199.95
121-880-02-72RU Bumper End, Right Rear, Reproduction, Unplated 799.95
121-880-02-72R Bumper End, Right Rear, Reproduction 1800.00
121-880-03-55 Bumper Guard, Rear Left 190SL (Genuine Mercedes-Benz) 1690.00
121-880-03-86 Grille Star and Barrel Assembly 190SL (Genuine Mercedes-Benz) 2000.00
121-880-04-55 Bumper Guard, Rear Right 190SL (Genuine Mercedes-Benz) 1690.00
121-885-00-95 Shim Front Bumper Joint 190SL / 300SL 18.23
121-888-00-22R Grille Frame, Upper, Reproduction, Plated 1399.95
121-888-01-22R Grille Frame, Lower, Reproduction, Plated 190SL / 300SL Gullwing 1349.95
136-403-03-02 Mount Kit,190SL / 300SL Emblem 35.95
136-527-00-71 T-Bolt, Rocker Panel Moulding 190SL Takes 14 Per Car 5.95
136-758-00-98R Seal Pad, Trunk Lock, Early 190SL 9.95
180-400-02-25 Wheel Trim Ring, 190SL, Excellent Reproduction 157.95
180-400-02-25R Wheel Trim Ring 4PC Set, 190SL, Reproduction 230.95
186-401-00-25 Hub Cap Chrome, 190SL/113 (Genuine Mercedes-Benz) 420.00
198-817-00-16 Hood Emblem 190SL / 300SL (Genuine Mercedes-Benz) 380.00
198-880-07-55 Bumper Guard, Left Front 190SL / 300SL (Genuine Mercedes-Benz) 1520.00
198-880-08-55 Bumper Guard, Right Front 190SL / 300SL(Genuine Mercedes-Benz) 1120.00
198-885-01-16R Bumperette Left Front 190SL / 300SL Reproduction 139.95
198-885-02-16R Bumperette Right Front 190SL / 300SL Reproduction 139.95

190SL - Seals and Gaskets - Pg. 17
000-301-00-97 Bellows, Accelerator Rod 24.95
000-826-05-97 Seal, License Lamp on Bumper 10.95
000-826-06-97 Seal Ring, Parking Light Lens 7.95
000-826-09-80 Seal, Headlamp Rim, USA (190SL / 300SL) 25.95
000-987-12-40 Bumper, Hood, Round 9.95
000-987-15-40 Bumper Set, Hood to Cowl 8.95
000-987-40-52 Seal, Windshield Frame to Cowl 1400mm 23.95
000-987-47-35 Seal ,Guard to Bumper, 2 Meters 29.95
000-987-55-51R Seal, Small Window Hard Top to Body 190SL 121.95
000-987-56-51 Seal, Large Window Hard Top to Body (Center rear) 59.95
000-987-85-40 Bumper, Hood, Rectangle 10.95
000-988-31-78 Outer Clip, Barbed, Felt Seal (Takes 5 Per Side) 2.95
113-987-04-40 Buffer, Hood, 113 / Deck Lid, 190SL 2.95
115-725-09-65 Felt Seal, Window Bottom (Top of door)..1 Meter, 4 Needed Per Car (190SL, 1= 13, 111, Als 26.95
120-546-00-85 Grommet, Tube, Headlamp Wiring 38.95
120-758-00-90 Seal, Trunk Handle, Late Sub to 120-758-01-90 17.00
120-826-12-97 Seal, Tail Lamp Lens, Early 190SL 55.95
121-471-00-81R Boot, Filler Neck, Reproduction190SL 34.95
121-671-01-20 Seal, Windshield, 190SL (Genuine Mercedes-Benz) 184.00
121-671-01-20R Seal, Windshield, 190SL, Reproduction 74.95
121-671-01-96 Seal, Windshield Post to Cowl 13.20
121-678-00-20 Seal, Small Window Hard Top Glass, (Genuine Mercedes-Benz) NO LONGER AVAI= LABLE 136.15
121-690-00-98 Seal, Hard Top to Windshield 310.00
121-690-00-98R Seal, Hard Top to Windshield Reproduction 190SL 193.95
121-720-01-78 Seal, Door, Left, 190SL (Genuine Mercedes-Benz) 885.00
121-720-01-78R Seal, Door, Left, German Reproduction,190SL 280.95
121-720-02-78 Seal, Door, Right, 190SL (Genuine Mercedes-Benz) 870.00
121-720-02-78R Seal, Door, Right, 190SL, German Reproduction 280.95
121-725-00-66 Seal, Windshield Post to Door Glass, Hard and Soft Top (Genuine Mercedes-Be= nz) 14.00
121-725-11-66 Seal, Left Door Glass to Top (Genuine Mercedes-Benz) 45.00
121-725-12-66 Seal, Right Door Glass to Top, (Genuine Mercedes-Benz) 45.00
121-758-00-98 Seal, Trunk, Original (Genuine Mercedes-Benz) 1230.00
121-758-00-98R Seal, Trunk, Reproduction 74.95
121-766-01-05 Seal Set, Door Handle, Left 21.95
121-766-02-05 Seal Set, Door Handle, Right 21.95
121-770-00-98 Seal, Soft Top to Windshield 318.00
121-770-00-98R Seal, Soft Top to Windshield, Reproduction 109.95
121-790-00-83 Seal, Large Window Hard Top Glass (Genuine Mercedes-Benz) 124.00
121-795-01-22 Seal, Hard Top to Body, Large Window, Left Rear (Genuine Mercedes-Benz) 50.00
121-795-02-22 Seal, Hard Top to Body, Large Window, Right Rear (Genuine Mercedes-Benz) 60.00
121-824-00-98R Seal, Wiper Shaft, Reproduction 18.95
121-885-00-97R Seal, Bumper Joint Cover 15.95
121-885-01-97 Seal Set, Bumper to Body 25.60
121-987-05-37 Prop Rod Holder 11.95
180-811-03-96 Seal, Mirror Base, Left 12.95
180-811-04-96 Seal, Mirror Base, Right 10.95
180-826-04-97 Seal, Tail Light Lens, Late 24.95
198-826-00-97 Seal, Parking Light 190SL / 300SL Gullwing 10.95
721-155A Seal Set, Cut to Fit, Reproduction 84.00
SB-10A Bumper, Glove Box 3.95

190SL - Door and Glass - Pg. 18
000-985-17-15 Moulding, Door Panel Bottom 52.95
121-671-00-27 Spoke, Windshield 190SL 62.95
121-671-01-10 Glass, Windshield Clear 190SL (Genuine Mercedes-Benz) 1524.95
121-671-02-10 Glass, Windshield, Tinted 288.00
121-671-01-10R Glass, Windshield, Clear, Reproduction, Sekurit, OEM Manufacturer 750.00
121-723-00-45 Hinge, Door 190SL (Takes 4) 284.95
121-723-00-52 Pin, Door Hinge, 190SL 84.95
121-723-00-71 Bolt, Door Hinge 12.45
121-725-00-55 Moulding, Door Top, Aluminum 190SL 114.95
121-725-01-10 Glass, Door, Left (Genuine Mercedes-Benz) 830.00
121-725-02-10 Glass, Door, Right (Genuine Mercedes-Benz) 830.00
121-725-01-10R Glass, Door, Left, Reproduction 190SL 338.95
121-725-02-10R Glass, Door, Right, Reproduction 337.95
121-725-02-32 Guide, Door Glass, Front 92.56
121-725-03-32 Guide, Door Glass, Rear 86.21
121-725-03-32R Guide Door Glass Rear (short) Repro 99.95
121-727-13-82 Trim, Armrest, Aluminum, With Insert 24.95
121-766-05-01 Handle Door Left Full Door Handle With Lock and Keys (Genuine Mercedes-Benz= ) 472.00
121-766-06-01 Handle Door Right Full Door Handle With Lock and Keys (Genuine Mercedes-Ben= z) .. 560.85
121-768-01-02 Crank, Window, Chrome (Fits 190SL and 300SL Roadster) 289.95
136-768-00-03 Escutcheon Assembly, Window Crank (Fits 190SL and 300SL) 94.95
180-720-03-93 Lever, Left Lock Assembly 190SL, Early 113 175.00
180-720-04-93 Lever, Right Lock Assembly 190SL, And Early 113 175.95
180-723-01-61 Escutcheon, Inner Lock, Later 190SL, 230SL, Early 250SL 124.95
180-723-02-24 Cover, Escutcheon Screw, New Number 180-723-05-24.. 19.00
180-760-01-81 Escutcheon, Inside Door Release (Fits 190SL and 300SL Roadster) 11.95
180-760-05-61 Handle, Inside, Left (Fits 190SL and 300SL Roadster) 330.95
180-760-06-61 Handle, Inside, Right (Fits 190SL and 300SL Roadster) 328.95
180-766-01-26 Door Lock Cylinder Set Late190SL From Chassis Number 7500412 (Reproduction) 535.95

190SL - Lighting - Pg. 19
1156 Bulb, 12V/18W, Sub for 072601-012190 1.95
000-826-01-67 Lens, License Lamp On Bumper 19.95
000-826-01-77 Cover, License Lens, Late 35.95
000-826-05-97 Seal, License Lamp on Bumper 10.95
000-826-06-97 Seal Ring, Parking Light Lens 7.95
000-826-07-67 Lens, Parking Lamp, Amber (190SL) 39.95
000-826-08-67 Lens, Parking Lamp, Clear, 190SL 43.95
000-826-09-80 Seal, Headlamp Rim, USA (190SL / 300SL) 25.95
000-826-10-80 Seal, Headlamp Rim, Euro 16.80
072601-012100 Bulb, European, Headlamp 45/40 4.95
072601-012200 Bulb, European, High/Low, 35/35 11.60
108-820-03-62 Lamp, Early License Plate, On Body, Left 190SL 1083.00
108-820-04-62 Lamp, Early License Plate, On Body, Right 190SL 1280.00
120-820-00-20 Lamp Assembly, Parking, Clear 193.95
120-820-04-61 Headlight Assembly Euro 190SL 687.95
120-826-02-51 Lens, Tail Lamp,190SL, Early 259.95
120-826-02-89 Rim, Head Lamp, European 190SL 181.95
120-987-00-37 Grommet, Headlight, Early, Inner 51.95
121-820-01-74 Reflector, Bumper Mounted, Left 190SL 120.95
121-820-02-20 Lamp Assembly, Parking, Amber 190SL 193.95
121-820-02-74 Reflector, Bumper Mounted, Right 190SL 120.95
121-820-02-61 Head Lamp Assembly, USA (No Longer Available) 321.55
121-826-00-40 Reflector, Bumper Mounted, Less Bracket 44.69
121-826-01-90 Lens, Head Lamp, European 190SL, 300SL (Genuine Hella Glass) 139.95
121-826-04-89 Rim, Head Lamp, USA Headlight 355.60
180-820-02-71R Lens, Tail Light Red/Clear/Red, Reproduction 190SL Late 227.95
180-820-03-71 Lens, Tail Light, Red/Clear/Amber, 190SL 252.30
180-820-04-71 Lens,Tail Light, Red/Clear/Red DO NO USE!!! 234.98
180-820-05-64 Tail Lamp Assembly, Red/Clear/Amber 532.95
180-820-06-64 Tail Lamp Assembly, Red/Clear/Red (Includes Gaskets) 539.95
186-826-01-66 Lens, License Lamp, to #750145 28.95
198-826-00-97 Seal, Parking Light 190SL / 300SL Gullwing 10.95
H12V-2W Bulb, Sub for 12V2W 2.95
K12V-18W Bulb, Bullet Ends, Large 3.85

190SL - Carpet and Accessories - Pg. 20
000-811-01-65 Ring, Glass Retainer (Genuine Mercedes-Benz) 15.50
001-121-00-00 Carpet Set, Trunk, Square Weave 190SL 889.95
001-997-00-02 Decal, 190SL, 230SL (Individual Decals) 8.25
001-CS-SQW Carpet Set, Square Weave, Includes Front and Rear 190SL 1949.95
001-RRCS-SQW 190SL Carpet Set If Rubber Front Mats Are Used 1216.95
121-542-00-00 Antenna, Hirschmann Style Universal, Locking, Replacement for 190SL 24.95
121-620-00-00 Insulation 36sqft Roll Sound Deadener Self Adhesive Waterproof Foam For Flo= or + Extra 1 94.95
121-680-00-00 Jump Seat Assembly, With Brackets 190SL 599.95
121-680-01-07 Floor, Rear, False, Left 169.95
121-680-01-09 Cover, Spare Tire Well 190SL 106.95
121-680-02-07 Floor, Rear, False, Right 198.95
121-680-05-08 Floor, False, Wood 29.95
121-684-00-10 Mat Set, Rubber, 5 Piece 190SL 1012.95
121-684-01-10 Mat Set, Trunk, 2 Piece 190SL 279.95
121-686-00-20C Sill Trim, Aluminum, Carpet 47.95
121-686-00-20R Sill Trim, Rubber Mats 45.95
121-686-01-80 Sill Rubber Set, 2 Piece 190SL 299.95
121-688-03-06 Left Side Kick Panel Wax Board 190SL 19.95
121-810-00-17 Glass, Clear, Inside Mirror 190SL 87.95
121-810-01-17 Stem, Inside Mirror, 190SL 335.16
121-810-02-17 Glass, Reflective, Inside Mirror 172.95
121-810-05-10 Frame, Sun Visor, 190SL 82.95
121-810-05-17R Stem, Inside Mirror 190SL 394.95
121-811-05-41 Bracket, Chrome Visor, Left 179.95
121-811-06-41 Bracket, Chrome Visor, Right 179.95
180-810-97-19 Mirror Head, Tinted 190SL, 230SL, Sub to 110-810-23-16 101.95
180-810-98-16R Mirror Assembly, Right, Reproduction (Gasket Not Included) 205.95
180-810-99-16R Mirror Assembly, Left, Reproduction (Gasket Not Included) 201.95
180-811-01-66 Mirror Glass Blue Tinted, Outside Mirror 190SL / 230SL (Genuine Mercedes-Be= nz) 21.00
180-919-00-96 Buffer, Rubber, Seat Tilt Tabs, Takes 8 4.95
180-919-00-97 Buffer, Rubber, Seat Tilt Bracket, Takes 4 16.95
180-919-03-91 Adjuster, Seat, Left 190SL (Late Style Seats) 315.95
180-919-04-91 Adjuster, Seat, Right 190SL (Late Style Seats) 315.95
701-820-01-10 Antenna, Manual 21.45

190SL - Tops and Upholstery - Pg. 21
000-984-51-31 Bolt, Shoulder, Chrome, Top Frame, Long Version (9mm Shoulder, 21mm Shoulde= r + Thread L 36.95
001-121-DP-LTHR Door Panel Kit, Leather, 190SL 1217.95
001-121-DP-TEX Door Panel Kit, Vinyl, 190SL 115.84
001-121-FS-L-55 Seat Covers, Leather, Early 55-57 190SL 2486.95
001-121-FS-LTHR Covers, Seats, Leather, Late 57-63 190SL 2312.95
001-121-FS-T-55 Covers, Seats, Vinyl, Early 55-57 264.74
001-121-FS-TEX Covers, Seats, Vinyl, Late 57-63 231.79
019-LTHR Leather, Sq Ft (For Half Hide Put In Quantity 30) (60 For Whole Hide) Adjus= ted To Actua 18.95
121-650-01-40 Turnbuckle, Hard Top, Left 530.00
121-650-02-40 Turnbuckle, Hard Top, Right 530.00
121-690-00-71 Turnbuckle, Rear, Lower (Hook) 266.95
121-696-01-72 Catch, Hard Top 114.95
121-722-01-98R CALL
121-770-00-02U Soft Top Frame 190SL (Used) 6500.00
121-770-00-26 Latch, Top Center, Windshield Frame 190SL 424.95
121-770-00-37 Wood Bow, Rear, Reproduction 190SL 229.95
121-770-00-66 Cable, Top Tensioner 190SL 48.95
121-770-01-10 CALL
121-770-01-29 Latch, Soft Top, Left 190SL 355.95
121-770-01-65R Tensioner Cable Assembly, Top, Left, Reproduction 132.95
121-770-02-29 Latch, Soft Top, Right 190SL 355.95
121-770-02-65R Tensioner Cable Assembly, Top, Right, Reproduction 132.95
121-770-05-39 Wood Bow, Left Side, Reproduction 190SL 229.95
121-770-05-65 Tensioner, Soft Top, Left 250.00
121-770-06-39 Wood Bow, Right Side 190SL 229.95
121-770-06-65 Tensioner, Soft Top, Right (Genuine Mercedes-Benz) 250.00
121-770-09-26 Latch Hook Assembly, Left 190SL 239.95
121-770-10-26 Latch Hook Assembly, Right 190SL 239.95
121-779-01-29 Rail, Top Cable Hold Down, Aluminum 190SL 528.95
121-779-01-36 Cap, End Rail, Left, One Hole 97.95
121-779-01-64 Moulding, Soft Top (Genuine Mercedes-Benz) 476.00
121-779-02-36 Cap, End Rail, Right, One Hole 141.95
121-779-03-36 Cap, End Rail, Left 3 Hole 165.95
121-779-04-36 Cap, End Rail, Right, Three Hole 169.95
121-790-01-50 Headliner, Beige, 190SL Large Window Hard Top 429.95
121-790-02-50 Headliner Beige 190SL Small Window Hard Top 429.95
150-5033-LTHR Boot Leather Cover For Convertible Top 190SL 1339.95
150-5033-TEX Boot, Vinyl, 190SL 434.83

190SL - Grommet Set - Pg. 22
110-997-88-81 Grommet Set, Firewall 190SL 23Pcs 59.95


Please note that we cannot guarantee our prices due to fluctuating supply, currency exchange, and cost of materials.
